- Detail
- 3D Model

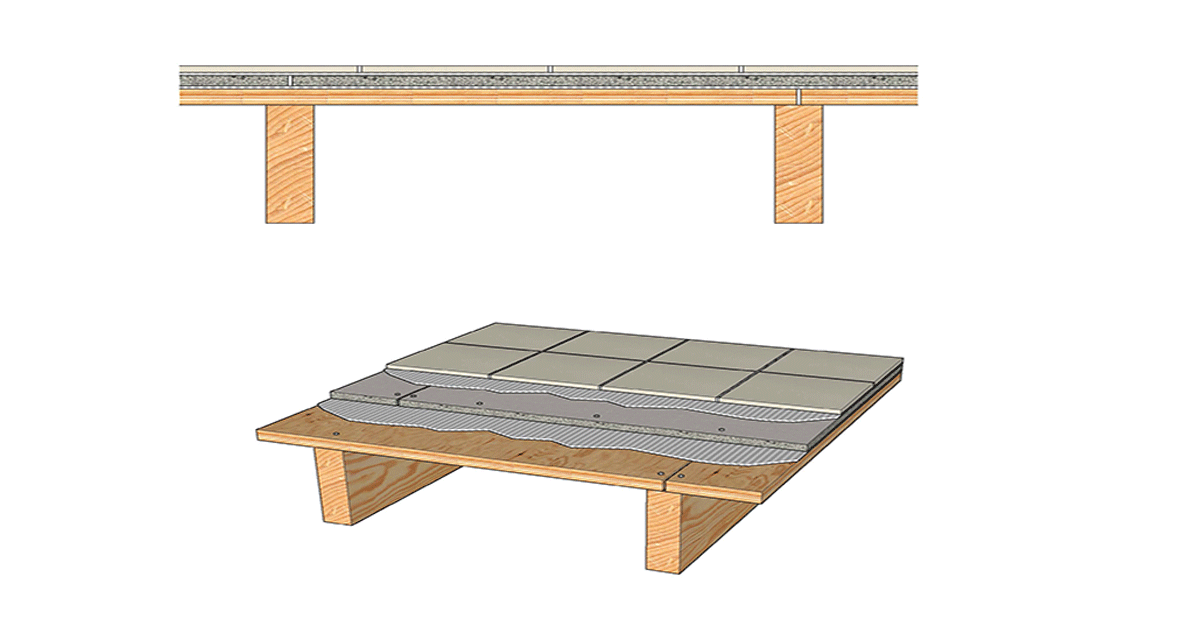

This detail shows ceramic tile adhered to cementitious backer units (CBU) over a wood substrate with a cementitious bond coat. The CBU underlayment is adhered and mechanically fastened to the plywood subfloor. Expansion joints in the floor assembly must be provided at locations shown by the design professional. This detail is based on the Tile Council of North America (TCNA) Handbook method F144.
