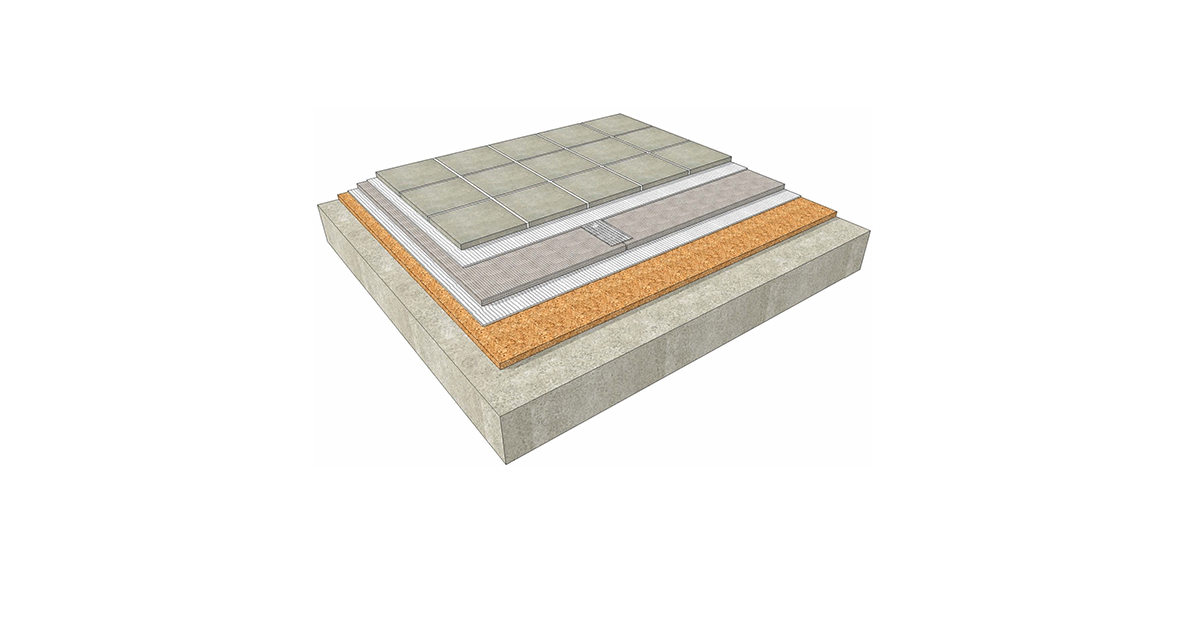

This detail shows tile laid on a cementitious backer unit (CBU) with taped joints on a concrete subfloor. A cork underlayment separates the tile assembly from the concrete for soundproofing. The tile is adhered to the CBU using a dry-set or latex-modified Portland cement mortar bond coat. The CBU is adhered to the concrete using dry-set mortar.
