01.030.0302: Base of Wall Detail - Flexible Flashing, Drip Edge, Term Bar, MDCD

• Download 3D Detail (PDF)
• View/Download 2D CAD Detail (DWG)
• View/Download 2D CAD Detail (PDF)

DESCRIPTION / NARRATIVE

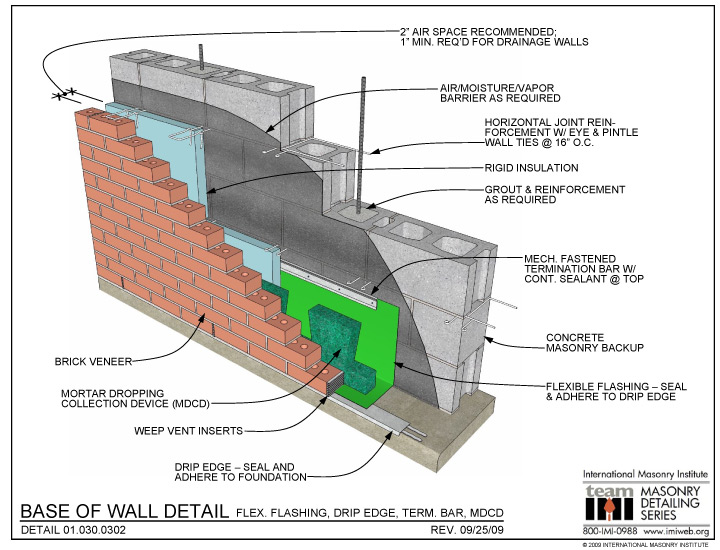

Details 01.030.0302 and 01.030.0302.2D (Flexible Flashing, Drip Edge, Termination Bar, MDCD):

Mortar dropping collection devices (MDCD) are used to help prevent the weep vents from becoming clogged with mortar droppings. (Figure 8).  Good workmanship is still required to minimize mortar droppings in the cavity.  There are various types of weep vents available (Figures 9 & 10). These devices allow water to pass out of the wall and permit air to circulate in the wall.  To accomplish a “vented” air space, weep vents must also be placed at the top of the wall.  Compartmentation should be considered when designing vented walls. These weep vents can be made of UV resistant plastics, metal or mesh type materials.  Weep vents should be placed at 16” or 24” o.c.  Closer spacing improves drainage and air circulation.
