Masonry Detailing Series

02.010.1311: Control Joint

02.010.1311: Control Joint

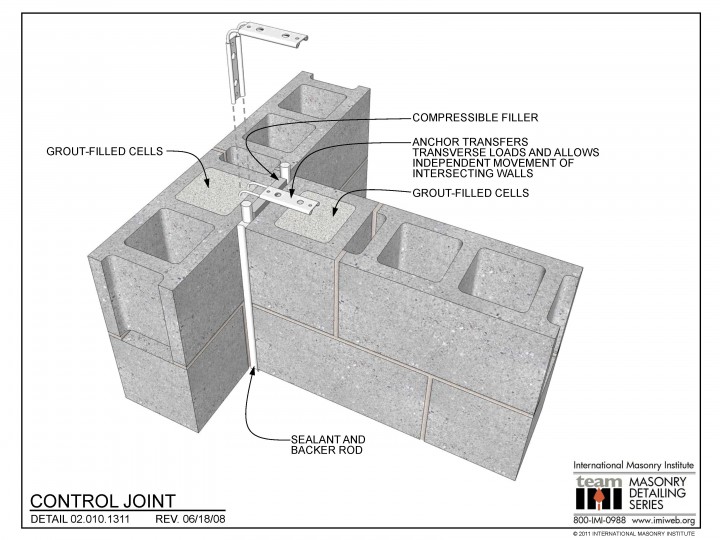

This detail shows a vertical control joint at intersecting CMU walls. The debonded shear anchor ties the walls together, but also allows the intersecting wall to shrink back from the continuous wall, as the anchor moves along its track. There is horizontal joint reinforcement at 16″ o.c. vertically in the wall (not shown), interrupted at the CJ.


02.010.1311
DOWNLOAD DETAIL

Dynamic 3D Detail

DOWNLOAD .SKP

AIAAir barrieranchorBACBlockBrickBricklayerCavityCJCMUcontrol jointConwelldebonded shear anchorDrainageFlashinggasketGreengroutHigh-performingIMIintersectingIUBACMasonryMDSMortarmovement jointSustainabilitySustainableWall tieWeeps
